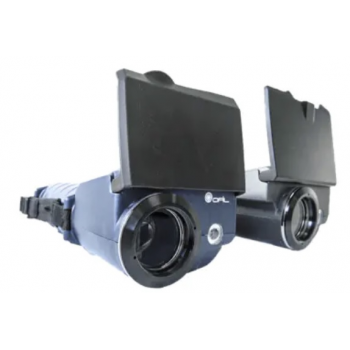

点击图片查看原图>>拍摄、存储、回访视频与照片
>>可见光&紫外光变焦
>>无线电电压灵敏度：3.6dBμV，1MHz,10m
>>自动和手动对焦OFIL紫外成像仪进口品牌UVolle-SX
>>电池运行时间超过4小时
>>5寸高分辨率背光可读TFT LCD 1000cd/m²
>>内置强大的led闪光灯
>>紫外光子计数
>>封装等 54
>>GPS、温湿度接口
>>紫外敏感性经测试并认证
>>持续运行无过热问题
①外形细小、重量轻
UVolle成像仪重量轻，外形小，配有手柄，适合单手操作，另外还配备了带衬垫的肩带。
②**定位电晕
基于1豪弧度的叠加精度，成像仪合并了紫外-可见光通道，能够**定位电晕、电弧、局部放电位置。UVolle成像仪优异的探测器能够呈现电晕的图像。
③紫外光子计数
每个时间单位里，计数检测到的紫外光子，用来表征电晕放电强度。便于研究、比较和汇报。OFIL紫外成像仪进口品牌UVolle-SX
④用户友好型设计
用户友好型界面，易于操作：开机，对准，拍摄和存储视频剪辑和静态图片，成像仪的默认设置可根据需要进行更改
⑤视频、图片、音频的录制与回放
视频和图片被记录存储在可移动磁盘上，可随时回放。语音注解可被记录用于文件编制和实验汇报。
⑥DAYCOR®技术核心
DAYCOR®技术核心是对紫外提供全日盲，确保高灵敏度(注册砖利EP1112459B1)，结构集成是另 种可选择的加强信号的方法。
⑦上等反光5寸LCD
5寸，高分辨率视频输出，800x480像素，1000cd/m²，日光可读，功率可调背光，可对检测点清晰成像OFIL紫外成像仪进口品牌UVolle-SX
⑧集成闪光灯
集成LED闪光灯拥有两 亮度，可检测设备内部以及较暗区域，不会干扰电晕检测
⑨通讯接口
RS232
OFIL紫外成像仪进口品牌UVolle-SX技术参数
UV – OPTICAL PROPERTIES
|
Minimum Discharge Detection |
1 pC @ 12m (tested by Innogy SE-Eurotest Germany: IEC 60270:2000 ) |
|
Minimum RIV Sensitivity |
3.6 dBµV @ 1MHz @ 10m (tested by Innogy SE-Eurotest : NEMA107-1987) |
|
Minimum UV Sensitivity |
2.6×10-18watt/cm2 |
|
Spectral Range |
240-280nm |
|
Detector Life Span |
No degradation |
|
UV frames Integration |
On | Off |
|
Focus type |
Slaved to visible |
VISIBLE – OPTICAL PROPERTIES
|
Minimum Visible Light Sensitivity |
0.1 Lux |
|
Spectral Range |
Visible range, Full color |
|
Focus Range and Type |
0.9m | 1.9ft to infinity, manual & auto (0.5m | 1.6ft w/ close-up lens) |
|
Zoom |
10x Optical, 12x Digital |
COMMUNICATION
|
Interface |
RS232 |
ConTROL & OPERATION
|
Working Modes |
Real time, standby, off |
|
Continuous Operation |
Unlimited. No overheating |
|
Control Inputs |
Keypad hot keys & menu |
|
Mounting Point |
Standard 1/4” x20 thread tripod mount |
|
Flashlight |
Built-in, LED 2 steps |
DISPLAY
|
Image Modes |
Visible/UV/Combine |
|
UV/Visible Overlay Accuracy |
Deviation < 1 miliradian |
|
Display |
5” Transflective sun proof color LCD (800x480 pixels), 1000 cd/m2 |
|
Status Indicators |
Battery, Memory, Gain, Counting, Date, Selected functions, Focus, Inspection mode , corona color, GPS (access.), Temp & Humidity(access.) |
|
User Configuration Settings |
Corona color (White, Red , Green, Yellow, Purple ) Time, Sleep Mode, LI, LCD Parameters |
ENVIRONMENT
|
Operating & Storage Temp Range |
-20ºC up to +55ºC | -4ºF up to +131ºF |
|
Encapsulation |
IP54 |
IMAGING PERFORMANCE
|
Field of View (HxV) |
6.40 x 4.80 |
|
Focus |
Full manual and auto focus for UV and visible channels |
|
UV Zoom |
3 steps |
MEDIA CAPTURE & STORAGE
|
Digital Storage |
Removable SD card |
|
Video Format |
AVI |
|
Stills Format |
BMP |
|
Audio |
External microphone |
IN/OUTPUT INTERFACES
|
Input |
Mic (VX & VC models), AC/DC, Aux |
|
Output |
Aux, Mini USB, Speaker, RS232 |
PHYSICAL CHARACTERISTICS
|
Size (LxWxH) |
29×13.6×8.5 cm | 11.4”x5.4”x3.3” |
|
Weight |
1.39Kg | 3lb |
POWER SUPPLY
|
Battery type |
Li-Ion |
|
Battery Run Time |
4 hours |
|
External Supply |
DC 9V |
|
Nominal Power Consumption |
6.5-10.5VDC, 10 Watts |
UV – OPTICAL PROPERTIES
|
SX |
VX |
|
|
|
√ |
√ |
Minimum Discharge Detection |
1 pC @ 12m (tested by Innogy SE-Eurotest Germany: IEC 60270:2000 ) |
|
√ |
√ |
Minimum RIV Sensitivity |
3.6 dBµV @ 1MHz @ 10m (tested by Innogy SE-Eurotest : NEMA107-1987) |
|
√ |
√ |
Minimum UV Sensitivity |
2.6×10-18watt/cm2 |
|
√ |
√ |
Spectral Range |
240-280nm |
|
√ |
√ |
Detector Life Span |
No degradation |
|
√ |
√ |
UV frames Integration |
On | Off |
|
√ |
√ |
Focus type |
Slaved to visible |
VISIBLE – OPTICAL PROPERTIES
|
SX |
VX |
|
|
|
√ |
√ |
Minimum Visible Light Sensitivity |
0.1 Lux |
|
√ |
√ |
Spectral Range |
Visible range, Full color |
|
√ |
√ |
Focus Range and Type |
0.9m | 1.9ft to infinity, manual & auto (0.5m | 1.6ft w/ close-up lens) |
|
√ |
√ |
Zoom |
10x Optical, 12x Digital |
COMMUNICATION
|
Interface |
RS232 |
ConTROL & OPERATION
|
Working Modes |
Real time, standby, off |
|
Continuous Operation |
Unlimited. No overheating |
|
Control Inputs |
Keypad hot keys & menu |
|
Mounting Point |
Standard 1/4” x20 thread tripod mount |
|
Flashlight |
Built-in, LED 2 steps |
DISPLAY
|
Image Modes |
Visible/UV/Combine |
|
UV/Visible Overlay Accuracy |
Deviation < 1 miliradian |
|
Display |
5” Color sun readable TFT LCD WVGA (800x480 pixels) 1000 cd/m2 |
|
Status Indicators |
Battery, Memory, Gain, Counting, Date, Selected functions, Focus, Inspection mode , corona color, GPS (access.), Temp & Humidity(access.) |
|
User Configuration Settings |
Corona color (White, Red , Green, Yellow, Purple ) Time, Sleep Mode, LI, LCD Parameters |
ENVIRONMENT
|
Operating & Storage Temp Range |
-20ºC up to +55ºC | -4ºF up to +131ºF |
|
Encapsulation |
IP54 |
IMAGING PERFORMANCE
MEDIA CAPTURE & STORAGE
|
Digital Storage |
Removable SD card |
|
Stills Format |
BMP |
IN/OUTPUT INTERFACES
|
Input |
Mic (VX & VC models), AC/DC, Aux |
|
Output |
Aux, Mini USB, Speaker, RS232 |
PHYSICAL CHARACTERISTICS
|
Size (LxWxH) |
29×13.6×8.5 cm | 11.4”x5.4”x3.3” |
|
Weight |
1.39Kg | 3lb |
POWER SUPPLY
|
Battery type |
Li-Ion |
|
Battery Run Time |
4 hours |
|
External Supply |
DC 9V |
|
Nominal Power Consumption |
6.5-10.5VDC, 10 Watts |
更多OFIL紫外成像仪进口品牌UVolle-SX信息请直接致电欧菲尔仪器上海
